What is a button load cell?

Button load cells are compact compression force sensors designed for applications where installation space is limited. Their low-profile construction typically incorporates a slightly convex loading surface that helps transfer force evenly to the sensing element. Strain gauge technology converts the small deformation of the elastic body into an electrical signal proportional to the applied load. Stainless steel construction and diaphragm-based designs provide mechanical strength, low deflection, and good repeatability, making these sensors suitable for both static and rapidly changing force measurement.

The small dimensions make a load button load cell particularly useful when a force sensor must be integrated directly between mechanical components. Depending on the design, installation can be achieved by bonding the underside to a flat surface, positioning the sensor between two assemblies, or using integrated mounting threads or a base. The selected mounting method should ensure that the applied force remains properly aligned with the sensing axis and that unwanted side loads or bending moments are minimized.

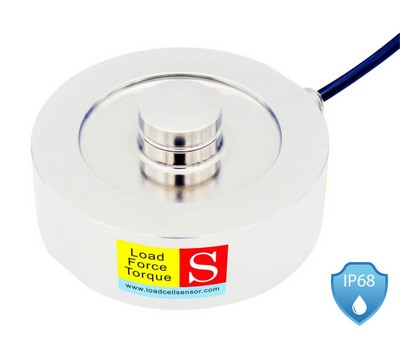

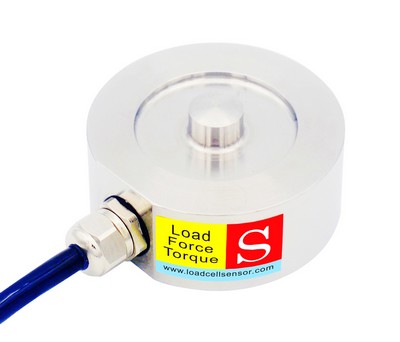

A miniature compression load cell can be used in equipment such as robotic grippers, automated force-control systems, clamping mechanisms, medical instruments, laboratory testing equipment, and production-line inspection systems. Its compact form allows engineers to monitor compression force without significantly increasing the size of the surrounding mechanism. Typical applications include overload detection, contact-force monitoring, press-force measurement, end-of-line testing, and feedback control for automated machinery.

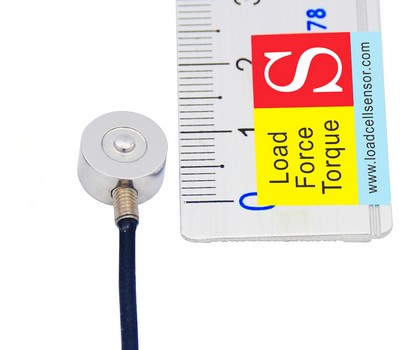

For extremely space-constrained applications, a tiny load cell can provide precise force measurement while occupying only a few millimeters of installation space. LCS offers compact models with capacities from 5 kg to 500 ton (50 N to 5000 kN), with outer diameters as small as 8 mm and heights as low as 4 mm. High-resistance 1000-ohm strain gauges can also be used to reduce heat generation and improve measurement stability, particularly in miniature designs.

A round force sensor with a compact cylindrical profile can be customized for specific mechanical and electrical requirements. LCS supports OEM projects with customized capacities, dimensions, mounting arrangements, cable configurations, materials, and output specifications, providing practical solutions for specialized force measurement systems.
