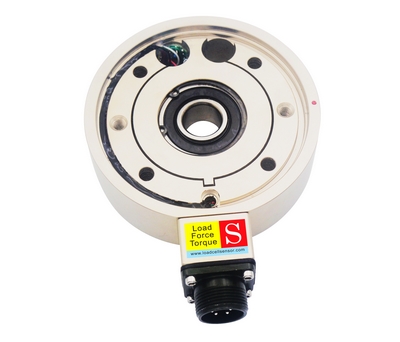

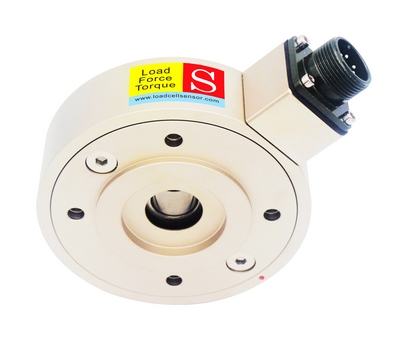

The STCK shaft-through load cell is a high-precision web tension sensor designed for accurate shaft-through tension measurement in industrial applications. Utilizing integrated strain gauge technology arranged in a Wheatstone bridge configuration, the STCK converts mechanical movement into a reliable electrical signal, enabling real-time web tension monitoring and control. Available in load capacities ranging from 15 kg to 1000 kg (150 N to 10 kN), these shaft-through tension sensors can be easily installed through four mounting through holes, making them an ideal solution for most tension control applications. The through-hole design allows installation in tight spaces and accommodates rollers with pre-mounted bearings, while the minimal deflection of the load cell body ensures consistent and precise force detection.

Specifically engineered for processes such as unwinding, rewinding, and intermediate handling, the STCK shaft-through load cell maintains optimal web tension to prevent material tears and preserve product quality. By delivering stable, accurate tension feedback, it enhances productivity and streamlines operations. LCS TECH also offers custom-made web tension sensors based on proven technology, providing reliable and high-performance solutions for specialized industrial tension control applications. The STCK series is the perfect choice for precise, durable, and versatile shaft-through tension measurement.
