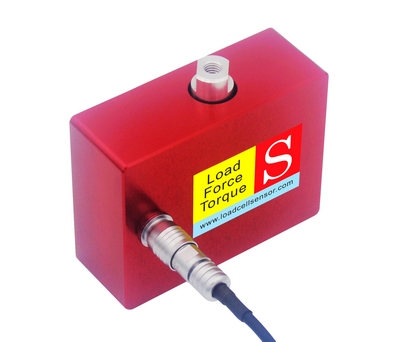

The Tension and compression load cell LRF400 is a compact aluminum force sensor designed for accurate measurement of both tensile and compressive forces. Available in rated capacities from 1 kg to 50 kg, this bidirectional load cell is suitable for applications requiring reliable force measurement in both push and pull directions. The sensor features three #10-32 UNF threaded holes on the bottom for secure installation on a solid, flat surface. A #10-32 UNF tapped hole on the top provides a convenient loading interface for applying tension or compression forces, making the LRF400 a versatile solution for force testing and measurement applications.

The LRF400 push pull force sensor features a detachable connector for convenient installation, replacement, and maintenance. For customers looking for a complete force measurement solution, LCS Tech can provide compatible analog and digital signal converters to convert the sensor output into commonly used industrial signals. Customization is also available to meet specific requirements for capacity, mechanical dimensions, cable or connector configuration, and electrical output. With its compact construction, bidirectional measurement capability, and flexible integration options, the LRF400 is well suited for testing equipment, automation systems, actuators, and other applications requiring precise push-pull force measurement.
