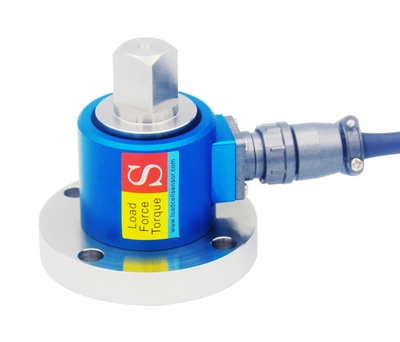

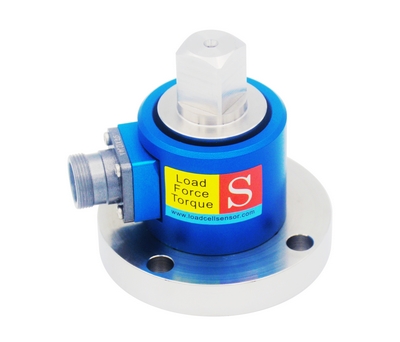

The Flange-to-square Reaction Torque Sensor RTT06 is designed for direct torque measurement and is particularly suitable for torque wrench calibration, testing, and quality assurance applications. Constructed from stainless steel, this stationary torque transducer features a mounting flange on one end for secure installation on a flat, rigid surface, while the opposite end is available with 1/4", 3/8", 1/2", 3/4", or 1" square drives for connection with torque sockets or sleeves. Based on proven strain gauge technology, the RTT06 is available in rated capacities from 5 Nm to 1000 Nm, with a non-linearity error of 0.2% full scale.

As a reliable torque wrench calibration sensor, the RTT06 supports accurate bi-directional torque measurement in both clockwise and counterclockwise directions. Its stationary design provides a practical solution for auditing and calibrating mechanical torque wrenches, as well as for torque verification in production lines and automated assembly applications. The square torque transducer can be integrated into various torque measurement and calibration systems according to specific requirements. LCS TECH can provide customized configurations to accommodate different mounting arrangements, square drive sizes, torque capacities, and specific application requirements.
