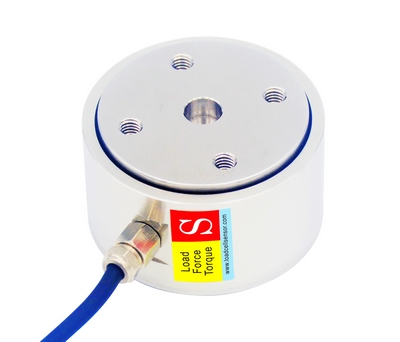

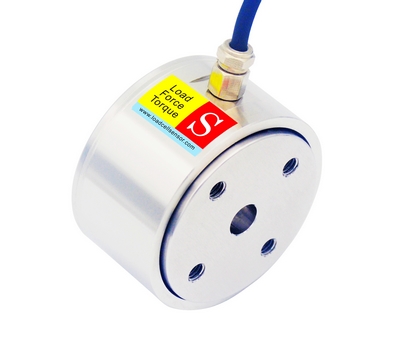

The LCF06 Tension Compression Force Transducer is a compact Flange mount load cell designed for direct installation between two assemblies. Featuring flanged mounting surfaces on both sides, this Flange type force sensor provides convenient flange-to-flange installation while maintaining a robust and stable structure. The stainless steel cylindrical body is available in capacities from 100 N to 20 kN, with unified installation dimensions across the range. Its 500 Ω or 1000 Ω high-resistance strain gauge bridge helps reduce heat generation and supports reliable long-term performance. With 0.1% FS non-linearity, the LCF06 provides accurate bidirectional force measurement for both tension and compression.

Designed for demanding industrial applications, this tension compression load cell combines compact dimensions with a wide range of measuring capacities. Its durable construction is suitable for dynamic loading and repeated force measurement, making it particularly useful for thrust measurement in cylinders and actuators, as well as robotics, material testing, press machines, plug-and-unplug testing, automated equipment, and industrial process control. The LCF06 can also be modified or customized in mechanical dimensions, capacity, or electrical specifications to meet specific application and integration requirements.
