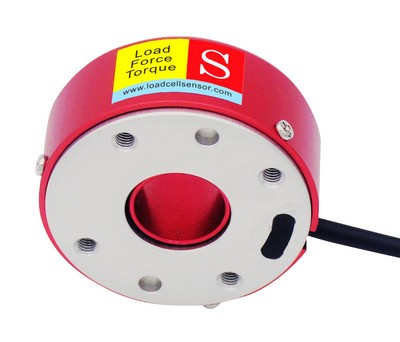

Miniature reaction torque sensor RTT15 features a 12mm diameter center through hole and a low profile design with only 16mm in height. Rated capacities available are 0.2Nm, 0.5Nm, 1Nm, 2Nm, 5Nm and 10Nm, suitable for reaction torque measurement in both clockwise and anticlockwise direction. 0-5V, 0-10V and 4-20mA output is available through external amplifier for easy signal processing. Static torque transducer RTT15 can be easily installed between torque applying unit and load-bearing surface thanks to its flange-to-flange structure, the compact size enables it to be used in applications where mounting space is a limiting factor. For OEM applications and special measuring tasks, customers may contact us for fully customized solutions.
