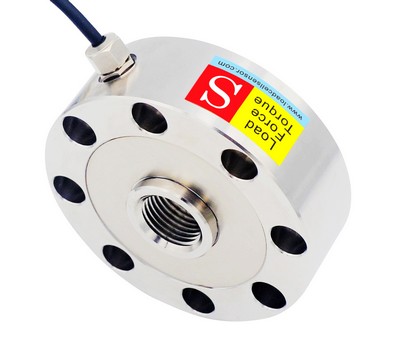

Stainless Steel Pancake Load Cell LCP09 provides a comprehensive measurement solution for static and dynamic forces with rated capacities available in 500N, 1kN, 2kN, 5kN, 10kN, 20kN and 30kN. Shear web load cell LCP09 can be easily installed to a solid and flat surface by means of the 8 countersunk holes located on the outer base of the transducer, and it can be loaded in both tension and compression direction through the M16*1.5 tapped hole located at the center of the sensor. Load buttons, eye bolts and other attachments can be connected to the central threaded hole to meet requirements of different applications. Low profile pancake load cell LCP09 consists of a Wheatstone full bridge with 2000 ohm high resistance, which makes it more energy efficient and has better long-term stability. For OEM applications and special measuring tasks, our engineering team is at your service to provide customized solutions.
